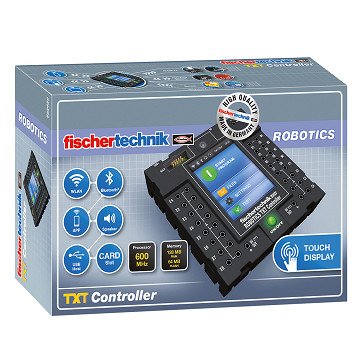

Fischertechnik Robotics Plus - Robotics TXT Controller

The compact Fischertechnik Robotics TXT controller (90 x 90 x 25mm) can be easily controlled with the color 2.4" touch display. The combined Bluetooth / WiFi RF module provides the perfect, wireless interface for numerous applications. The numerous interfaces also include a USB host port for USB sticks and other components such as the fischertechnik USB camera. The integrated Micro SD card slot can expand the memory capacity. Controllers can be connected.

Please note: to use this item you need the Power Set (item 2580618) or Battery Set (item 2580619).

Characteristics:
• Dual Processor: ARM Cortex A8 (32bit 500mHz) + Cortex M3
• Storage capacity: 128 MB DDR3 RAM, 64 MB Flash
• Extra storage capacity: via Micro SD card slot
• Screen: 2.4 inch color touch screen (320x240 pixels)
• 8 universal inputs: digital/analog 0-9VDC, analog 0-5 kΩ
• 4 fast inputs for receiving measured values: digital, frequency up to 1kHz
• 4 motor outputs 9V/250mA (max 800 mA): speed infinitely adjustable, short-circuit resistant, alternatively can also be used as 8 separate outputs (for example for lamps)
• Combined Bluetooth/WiFi transmitter/receiver: BT 2.1 EDR+ 4.0; WLAN 802.11 b/g/n
• IR receiver diode: for communication with the fischertechnik Control Set
• USB 2.0 client: mini USB connection for connection to PC or other device
• USB interface: USB-A connection for fischertechnik USB camera, USB stick and other USB devices
• Camera interface: runs over the USB interface, Linux camera drivers are integrated into the operating system
• 10 pin connector: for expanding the inputs and outputs of the Controller; for example as an I2C interface
• Integrated speaker
• Integrated real-time clock with replaceable backup battery: for obtaining accurate readings in defined time periods
• A Linux-based Open Source operating system
• Programmable with ROBO Pro, C-Compiler, PC-Library and many others
• Connection possible with Smartphone/Tablet PC via Bluetooth or WLAN; The connected devices can be used as a control unit for the Controller. This is controlled via ROBO Pro Software
• Size: 90x90x25 mm
• Power supply: via a 3.45 mm 9V DC plug or via the 2.5 mm fischertechnik connection points
